Semiconductor Devices & Lasers

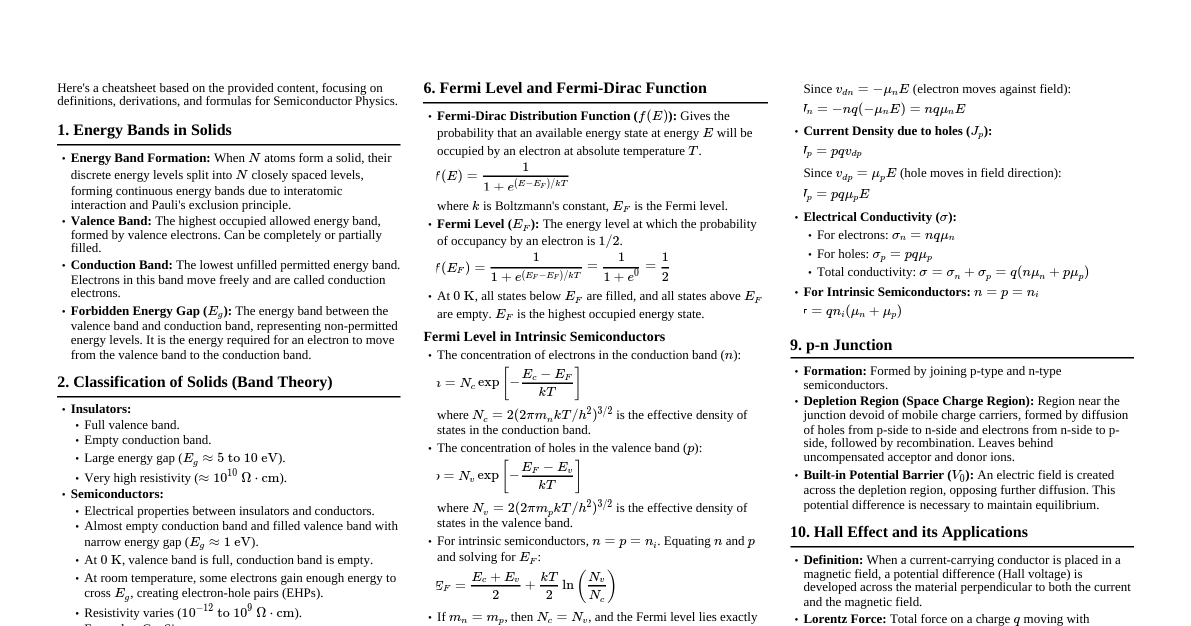

Cheatsheet Content

1. Intrinsic and Extrinsic Semiconductors Semiconductors are materials with electrical conductivity between conductors and insulators. Their conductivity can be precisely controlled by doping. Intrinsic Semiconductor: A pure semiconductor material (e.g., Silicon, Germanium). At absolute zero, it behaves like an insulator. At room temperature, thermal energy excites electrons from the valence band to the conduction band, creating an equal number of electrons ($n$) and holes ($p$). The electron concentration in the conduction band ($n$) is equal to the hole concentration in the valence band ($p$), both equal to the intrinsic carrier concentration ($n_i$). So, $n = p = n_i$. Conductivity is relatively low and highly dependent on temperature. Extrinsic Semiconductor: An intrinsic semiconductor whose electrical properties are modified by intentionally introducing impurities (doping). Doping significantly increases conductivity and allows control over the type of majority charge carrier. n-type Semiconductor: Created by doping an intrinsic semiconductor with donor impurities (pentavalent atoms like Phosphorus, Arsenic, Antimony in Silicon). These impurities have 5 valence electrons. Four valence electrons form covalent bonds with host atoms, while the fifth electron is loosely bound and easily excited into the conduction band, becoming a free electron. This creates a large excess of free electrons, making them the majority carriers ($n \gg p$). Holes are minority carriers. p-type Semiconductor: Created by doping an intrinsic semiconductor with acceptor impurities (trivalent atoms like Boron, Aluminum, Gallium in Silicon). These impurities have 3 valence electrons. These three valence electrons form covalent bonds, leaving one bond unsaturated (a "hole"). This hole can accept an electron from a neighboring bond, effectively moving the hole. This creates a large excess of holes, making them the majority carriers ($p \gg n$). Electrons are minority carriers. 2. Dependence of Fermi Level on Carrier Concentration and Temperature The Fermi level ($E_F$) is a hypothetical energy level at which the probability of finding an electron is 0.5. Its position relative to the band edges dictates the electrical properties of the semiconductor. Intrinsic Semiconductor: In an intrinsic semiconductor, the Fermi level ($E_F$) lies approximately in the middle of the band gap ($E_g$). The exact position slightly depends on the effective masses of electrons and holes: $E_F = \frac{E_c + E_v}{2} + \frac{kT}{2} \ln \left( \frac{N_v}{N_c} \right)$ where $E_c$ is conduction band minimum, $E_v$ is valence band maximum, $k$ is Boltzmann constant, $T$ is temperature, $N_c$ and $N_v$ are effective density of states in the conduction and valence bands, respectively. As temperature increases, $n_i$ increases, but $E_F$ remains near the center of the band gap. Extrinsic Semiconductor (Carrier Concentration Dependence): n-type: When doped with donors, the electron concentration in the conduction band ($n$) increases significantly. To maintain the intrinsic carrier concentration relationship ($n \cdot p = n_i^2$), the hole concentration ($p$) decreases. This shift in carrier concentrations causes the Fermi level ($E_F$) to move closer to the conduction band ($E_c$). The higher the donor concentration, the closer $E_F$ is to $E_c$. p-type: When doped with acceptors, the hole concentration in the valence band ($p$) increases. The electron concentration ($n$) decreases. This causes the Fermi level ($E_F$) to move closer to the valence band ($E_v$). The higher the acceptor concentration, the closer $E_F$ is to $E_v$. Temperature Dependence: In extrinsic semiconductors, as temperature increases: At low temperatures, $E_F$ is close to the donor/acceptor level. As temperature rises, more donor/acceptor atoms ionize, and $E_F$ continues to move towards $E_c$ (n-type) or $E_v$ (p-type) until all impurities are ionized. At even higher temperatures, thermal generation of intrinsic electron-hole pairs becomes dominant over impurity ionization. The semiconductor starts to behave more like an intrinsic material, and its Fermi level ($E_F$) moves back towards the intrinsic Fermi level ($E_i$), which is at the center of the band gap. Energy Band Diagram illustrating Fermi Level position: E_c E_v E_F (Intrinsic) Intrinsic E_c E_v E_F (n-type) n-type E_c E_v E_F (p-type) p-type 3. Carrier Transport: Diffusion and Drift Charge carriers (electrons and holes) move within a semiconductor due to two primary mechanisms: drift and diffusion. These movements constitute electric currents. Drift: Definition: The movement of charge carriers under the influence of an external electric field ($E$). When an electric field is applied, free electrons in the conduction band move opposite to the field, and holes in the valence band move in the direction of the field. The average velocity attained by carriers is called the drift velocity ($v_d$), which is proportional to the electric field: $v_d = \mu E$. Here, $\mu$ is the mobility of the carrier (electron mobility $\mu_n$, hole mobility $\mu_p$). Drift Current Density ($J_{drift}$): The current resulting from drift motion. $J_{drift} = J_n + J_p = (q n \mu_n + q p \mu_p) E = \sigma E$ where $q$ is the elementary charge, $n$ and $p$ are electron and hole concentrations, respectively, and $\sigma$ is the conductivity of the material ($\sigma = q n \mu_n + q p \mu_p$). This mechanism is responsible for current flow in resistive materials and ohmic contacts. Diffusion: Definition: The movement of charge carriers from a region of higher concentration to a region of lower concentration, driven by the random thermal motion of carriers. This occurs even in the absence of an electric field. For example, if there's a higher concentration of electrons in one part of a semiconductor, they will tend to spread out to regions where their concentration is lower. The rate of diffusion is proportional to the concentration gradient ($\frac{dn}{dx}$ or $\frac{dp}{dx}$). Diffusion Current Density ($J_{diffusion}$): The current resulting from diffusion motion. For electrons: $J_n = q D_n \frac{dn}{dx}$ (electrons move from high to low concentration, current is opposite to electron flow). For holes: $J_p = -q D_p \frac{dp}{dx}$ (holes move from high to low concentration, current is in the same direction as hole flow). where $D_n$ and $D_p$ are the diffusion coefficients for electrons and holes, respectively. Einstein Relation: Connects diffusion coefficient and mobility: $\frac{D}{\mu} = \frac{kT}{q}$. This relation is crucial for understanding carrier transport at thermal equilibrium. Diffusion is a key mechanism in p-n junctions, where carriers diffuse across the junction due to concentration gradients. 4. p-n Junction A p-n junction is formed by bringing a p-type semiconductor into intimate contact with an n-type semiconductor. It is the fundamental building block of most semiconductor devices. Formation and Depletion Region: When p-type and n-type materials are joined, a concentration gradient exists for both electrons and holes across the junction. Electrons from the n-side diffuse into the p-side, and holes from the p-side diffuse into the n-side. As electrons leave the n-side, they leave behind positively charged donor ions ($N_D^+$). As holes leave the p-side, they leave behind negatively charged acceptor ions ($N_A^-$). These immobile ions create a region around the junction that is depleted of free charge carriers, called the depletion region (or space-charge region). The fixed charges in the depletion region create an internal electric field pointing from the n-side to the p-side. This field opposes further diffusion, establishing an equilibrium and a built-in potential barrier ($V_{bi}$). Biasing: Forward Bias: A positive voltage is applied to the p-side and a negative voltage to the n-side. This external voltage opposes and reduces the built-in potential barrier ($V_{bi}$). The electric field in the depletion region is reduced, allowing majority carriers to easily diffuse across the junction. Electrons from the n-side are injected into the p-side, and holes from the p-side are injected into the n-side, resulting in a large forward current. Reverse Bias: A negative voltage is applied to the p-side and a positive voltage to the n-side. This external voltage adds to the built-in potential barrier, increasing its height. The electric field in the depletion region increases, and the depletion region widens. Majority carriers are pulled away from the junction, and virtually no current flows, except for a very small reverse saturation current ($I_0$) due to the diffusion of minority carriers. Ideal Diode Equation: The current-voltage (I-V) characteristic of an ideal p-n junction diode is given by: $I = I_0 \left( e^{\frac{qV}{nkT}} - 1 \right)$ where $I$ is the diode current, $I_0$ is the reverse saturation current, $V$ is the applied voltage (positive for forward bias, negative for reverse bias), $q$ is the elementary charge, $k$ is Boltzmann's constant, $T$ is temperature in Kelvin, and $n$ is the ideality factor (typically between 1 and 2). p-n Junction Diagram: P Holes (Majority) N Electrons (Majority) Depletion Region ($N_A^-$) ($N_D^+$) Built-in E-field 5. Heterojunctions (Qualitative) A heterojunction is a junction formed between two dissimilar semiconductor materials, typically with different band gaps and/or electron affinities. This contrasts with a homojunction (like a standard p-n junction) which is formed between two regions of the same semiconductor material. Key Concept: Band Gap Engineering: The primary advantage of heterojunctions is the ability to "engineer" the energy band diagram across the device. By choosing materials with different band gaps, one can create abrupt changes (discontinuities or "offsets") in the conduction band ($E_c$) and valence band ($E_v$) at the interface. Advantages: Enhanced Carrier Confinement: Wider band gap materials can act as barriers, confining carriers (electrons or holes) to narrower band gap regions. This increases carrier concentration in the active region, improving device efficiency (e.g., in laser diodes and HEMTs). Improved Injection Efficiency: In a heterojunction bipolar transistor (HBT), a wider band gap emitter can efficiently inject minority carriers into the base while blocking reverse injection, leading to higher gain. Higher Speed: Reduced parasitic capacitances and improved carrier transport mechanisms can lead to faster devices. Tunable Optical Properties: The effective band gap can be tailored, allowing for devices that emit or detect light at specific wavelengths. Band Alignment: The way the conduction and valence bands align at the interface is crucial. There are different types of band alignments (Type I, Type II, Type III), depending on the relative positions of the band edges of the two materials. These alignments determine how carriers are confined and transported. Examples of Materials: Often involves III-V compounds like GaAs and AlGaAs, or InP and InGaAs. For instance, a GaAs/AlGaAs heterojunction is common in high-speed transistors and laser diodes. Applications: High Electron Mobility Transistors (HEMTs), Heterojunction Bipolar Transistors (HBTs), Laser Diodes, Solar Cells (multi-junction), Photodetectors. Qualitative Band Diagram of a Type-I Heterojunction: Material 1 (Wide Eg) Material 2 (Narrow Eg) E_c1 E_v1 E_c2 E_v2 ΔE_c ΔE_v 6. Metal-Semiconductor Junction (Ohmic and Schottky) The interface formed between a metal and a semiconductor can exhibit two fundamentally different electrical behaviors, depending on the work functions of the materials and the doping of the semiconductor. Ohmic Contact: Definition: An ohmic contact is a metal-semiconductor junction that has a linear and symmetric current-voltage (I-V) characteristic, allowing current to flow easily in both directions. It exhibits very low resistance. Condition for Formation: An ohmic contact forms when the work function of the metal ($\Phi_M$) is approximately equal to the work function of the semiconductor ($\Phi_S$), or more precisely, when the barrier to charge flow is very low or negligible. For n-type semiconductor: Ohmic contact forms if $\Phi_M \le \Phi_S$ (metal work function is less than or equal to semiconductor work function). For p-type semiconductor: Ohmic contact forms if $\Phi_M \ge \Phi_S$. Practical Realization: Often achieved by heavily doping the semiconductor surface at the contact region. Heavy doping makes the depletion region extremely thin, allowing carriers to tunnel through the potential barrier, resulting in low resistance. Purpose: To provide an efficient and low-loss electrical connection between the semiconductor device and external circuitry. Without good ohmic contacts, the performance of semiconductor devices would be severely degraded by contact resistance. Schottky Diode (Rectifying Contact): Definition: A Schottky contact is a metal-semiconductor junction that exhibits rectifying (diode-like) behavior, allowing current to flow easily in one direction (forward bias) and blocking it in the reverse direction. Condition for Formation: A Schottky contact forms when there is a significant difference between the work function of the metal ($\Phi_M$) and the electron affinity ($\chi_S$) of the semiconductor, leading to the formation of a potential barrier (Schottky barrier) at the interface. For n-type semiconductor: Schottky contact forms if $\Phi_M > \chi_S$ (metal work function is greater than semiconductor electron affinity). For p-type semiconductor: Schottky contact forms if $\Phi_M Mechanism: Similar to a p-n junction, a depletion region is formed in the semiconductor near the metal interface, creating a potential barrier. Forward Bias: Applied voltage reduces the barrier, allowing electrons (for n-type) to flow from the semiconductor into the metal. Reverse Bias: Applied voltage increases the barrier, blocking current flow (except for a small reverse leakage current). Advantages: Faster Switching Speed: Unlike p-n junctions, Schottky diodes are majority carrier devices. They do not rely on the diffusion and recombination of minority carriers, which are slow processes. This makes them much faster for switching applications. Lower Forward Voltage Drop: Typically have a lower turn-on voltage compared to silicon p-n junction diodes. Applications: High-frequency rectifiers, mixers, detectors, voltage clamping. Qualitative Band Diagrams for Metal-Semiconductor Junctions (n-type): Ohmic Contact (n-type) Metal E_Fm n-type SC E_c E_v E_Fs Schottky Contact (n-type) Metal E_Fm n-type SC E_c E_v E_Fs 7. Photoconductivity and Photovoltaic Effect These are two fundamental optoelectronic phenomena that describe how light interacts with semiconductor materials to produce electrical effects. Photoconductivity: Definition: Photoconductivity is the phenomenon where the electrical conductivity of a material increases upon exposure to electromagnetic radiation (light). Mechanism: When a photon with energy greater than or equal to the band gap energy ($h\nu \ge E_g$) strikes a semiconductor, it can be absorbed. This absorption excites an electron from the valence band to the conduction band, creating an electron-hole pair (EHP). These newly generated free electrons and holes increase the concentration of charge carriers in the semiconductor. If an external voltage is applied across the material, these additional carriers contribute to the current flow, thus increasing the conductivity. Photoconductive Cell (Light Dependent Resistor - LDR): A common device based on photoconductivity. It is essentially a semiconductor material (e.g., CdS, CdSe) with ohmic contacts. Its electrical resistance decreases significantly as the intensity of incident light increases. Applications: Light sensors, automatic street lights, camera light meters, smoke detectors. Photovoltaic Effect: Definition: The photovoltaic effect is the generation of a voltage (photovoltage) and an electric current in a material upon exposure to light, without the application of an external voltage. It converts light energy directly into electrical energy. Mechanism: The most common device utilizing the photovoltaic effect is a p-n junction (e.g., in a solar cell or photodiode). When photons with sufficient energy ($h\nu \ge E_g$) strike the p-n junction, especially within or very close to the depletion region, they generate electron-hole pairs. The built-in electric field in the depletion region separates these photogenerated carriers: electrons are swept to the n-side, and holes are swept to the p-side. This separation of charge creates an excess of electrons on the n-side and an excess of holes on the p-side, leading to a potential difference (voltage) across the junction. If an external circuit is connected, this photovoltage drives a photocurrent, delivering electrical power. Key difference from Photoconductivity: Photoconductivity requires an external power source to measure the change in resistance, while the photovoltaic effect generates its own voltage and current. 8. Optoelectronic Devices Optoelectronic devices either convert electrical energy into light (e.g., LED) or convert light energy into electrical energy (e.g., photodiode, solar cell). Photoconductive Cell (LDR): (See above, under Photoconductivity). Photodiode: Structure: A p-n junction typically designed with a large depletion region and a transparent window to allow light incidence. Often operated in reverse bias. Operation: When light strikes the depletion region, it generates electron-hole pairs. The strong electric field in reverse bias sweeps these carriers across the junction, creating a reverse photocurrent that is directly proportional to the incident light intensity. Applications: Light detection, optical communication receivers, remote controls, medical imaging. Solar Cell: Structure: A large-area p-n junction, optimized for maximum light absorption and carrier collection. Often includes anti-reflection coatings and metal contacts. Operation: Utilizes the photovoltaic effect. When exposed to sunlight, it generates electron-hole pairs. The built-in electric field separates them, causing electrons to move to the n-side and holes to the p-side. This creates a voltage and, when connected to a load, a current, thus converting solar energy into electrical power. Key Parameters: Open-circuit voltage ($V_{oc}$), short-circuit current ($I_{sc}$), fill factor (FF), and efficiency ($\eta$). Applications: Renewable energy generation, calculators, satellites. Light Emitting Diode (LED): Structure: A forward-biased p-n junction made from direct bandgap semiconductors (e.g., GaAs, GaN, InGaN) to ensure efficient light emission. Operation: When forward biased, electrons are injected from the n-side into the p-region, and holes are injected from the p-side into the n-region. In the depletion region or active region, these injected minority carriers recombine with majority carriers. In a direct bandgap semiconductor, this recombination releases energy predominantly in the form of photons (light emission), rather than heat. The color of the emitted light depends on the bandgap energy of the semiconductor material ($E_{photon} \approx E_g$). Applications: Indicator lights, displays, general illumination, traffic lights, automotive lighting, optical communication. Photodiode and LED Operation Diagram: Photodiode (Reverse Bias) P N Depletion Light E-field - + I_photo LED (Forward Bias) P N Active Holes Electrons hν (Light) + - 9. Lasers: Einstein’s Theory of Matter-Radiation Interaction Lasers (Light Amplification by Stimulated Emission of Radiation) operate on quantum mechanical principles described by Albert Einstein in 1917, involving three fundamental processes when matter interacts with electromagnetic radiation. Energy Levels: Consider an atom with two energy levels: a lower energy state ($E_1$) and an upper energy state ($E_2$). Let $N_1$ be the number of atoms in $E_1$ and $N_2$ be the number of atoms in $E_2$. 1. Absorption ($B_{12}$): Process: An atom in the lower energy state ($E_1$) absorbs a photon of energy $h\nu = E_2 - E_1$ and transitions to the higher energy state ($E_2$). Rate: The rate of absorption is proportional to the number of atoms in the lower state ($N_1$) and the spectral energy density of the incident radiation ($\rho(\nu)$). $R_{12} = B_{12} N_1 \rho(\nu)$ where $B_{12}$ is Einstein's coefficient for stimulated absorption. 2. Spontaneous Emission ($A_{21}$): Process: An atom in the upper energy state ($E_2$) spontaneously transitions to the lower energy state ($E_1$), emitting a photon of energy $h\nu = E_2 - E_1$. This process is random, and the emitted photons are incoherent (random direction, phase, and polarization). Rate: The rate of spontaneous emission is proportional only to the number of atoms in the upper state ($N_2$). $R_{21}^{spont} = A_{21} N_2$ where $A_{21}$ is Einstein's coefficient for spontaneous emission. 3. Stimulated Emission ($B_{21}$): Process: An atom in the upper energy state ($E_2$) is struck by an incident photon of energy $h\nu = E_2 - E_1$. This incident photon "stimulates" the excited atom to emit an identical photon (same energy, phase, direction, and polarization) and return to the lower energy state ($E_1$). This is the key process for laser action, as it leads to light amplification. Rate: The rate of stimulated emission is proportional to the number of atoms in the upper state ($N_2$) and the spectral energy density of the incident radiation ($\rho(\nu)$). $R_{21}^{stim} = B_{21} N_2 \rho(\nu)$ where $B_{21}$ is Einstein's coefficient for stimulated emission. Relation Between Einstein Coefficients: At thermal equilibrium, the rates of upward and downward transitions must be equal. This leads to the following relationships: $B_{12} = B_{21}$ (The probability of stimulated absorption is equal to the probability of stimulated emission). $A_{21} = \frac{8\pi h\nu^3}{c^3} B_{21}$ (Relates spontaneous emission to stimulated emission, showing that spontaneous emission dominates at higher frequencies and temperatures). Population Inversion: For light amplification (i.e., for a laser to work), the rate of stimulated emission must exceed the rate of absorption. This requires that the number of atoms in the upper energy state ($N_2$) must be greater than the number of atoms in the lower energy state ($N_1$). This condition, $N_2 > N_1$, is called population inversion . It is a non-equilibrium state, as at thermal equilibrium, $N_1 > N_2$ (Boltzmann distribution). Pumping: To achieve population inversion, energy must be supplied to the laser medium to excite atoms to the upper energy state. This process is called pumping. Common pumping methods include optical pumping (using intense light sources) and electrical pumping (using electrical discharge). Energy Level Diagram for Einstein's Processes: E_1 E_2 Absorption hν N_1 Spontaneous Emission hν N_2 Stimulated Emission hν N_2 Incident hν 10. Laser Systems and Characteristics of Laser Beam Different laser systems are designed based on the number of energy levels involved in achieving population inversion, which affects their efficiency and operational mode. Two-Level Laser System: In a simple two-level system ($E_1, E_2$), pumping promotes atoms from $E_1$ to $E_2$. However, as $N_2$ increases, the rate of stimulated emission from $E_2$ to $E_1$ and absorption from $E_1$ to $E_2$ become equal. It is impossible to achieve population inversion ($N_2 > N_1$) in a stable two-level system under continuous pumping because the maximum $N_2$ can be is $N_{total}/2$. Therefore, two-level systems cannot sustain continuous laser action. Three-Level Laser System (e.g., Ruby Laser): Involves three energy levels: a ground state ($E_1$), a short-lived pump level ($E_3$), and a metastable upper laser level ($E_2$). Pumping: Atoms are rapidly pumped from $E_1$ to $E_3$. Relaxation: Atoms in $E_3$ quickly undergo non-radiative decay to the metastable $E_2$ state (a state with a relatively long lifetime). Population Inversion: Due to the fast decay from $E_3$ to $E_2$ and the longer lifetime of $E_2$, atoms accumulate in $E_2$. If pumping is strong enough, population inversion can be achieved between $E_2$ and $E_1$ ($N_2 > N_1$). Lasing: Stimulated emission occurs between $E_2$ and $E_1$. Disadvantage: A large amount of pumping power is required because population inversion must be achieved relative to the ground state ($E_1$), which has a very high population initially. This typically results in pulsed operation. Four-Level Laser System (e.g., He-Ne Laser, Nd:YAG Laser): Involves four energy levels: a ground state ($E_1$), a pump level ($E_4$), an upper laser level ($E_3$), and a lower laser level ($E_2$). Pumping: Atoms are excited from $E_1$ to $E_4$. Fast Decay: Atoms in $E_4$ quickly decay non-radiatively to the metastable upper laser level ($E_3$). Lasing: Stimulated emission occurs between $E_3$ and $E_2$. Fast Decay: Atoms in the lower laser level ($E_2$) rapidly decay non-radiatively to the ground state ($E_1$). This rapid depopulation of $E_2$ is crucial. Advantage: Population inversion between $E_3$ and $E_2$ ($N_3 > N_2$) is much easier to achieve than in a three-level system because $E_2$ is usually almost empty due to its fast decay to $E_1$. This requires less pumping power and often allows for continuous wave (CW) operation. Energy Level Diagrams for 3-Level and 4-Level Lasers: Three-Level Laser System E_1 (Ground) E_2 (Metastable) E_3 (Pump) Pump Fast Decay Laser Four-Level Laser System E_1 (Ground) E_2 (Lower Laser) E_3 (Upper Laser) E_4 (Pump) Pump Fast Decay Laser Fast Decay Characteristics of Laser Beam: Monochromatic: Laser light consists of a single, highly pure wavelength (or a very narrow range of wavelengths). This is because only photons of a specific energy ($h\nu = E_{upper} - E_{lower}$) can stimulate emission. Coherent: Laser light is highly coherent, meaning its waves are in phase both spatially (across the beam profile) and temporally (over time). This property allows for precise interference and diffraction effects. Directional: Laser light is emitted as a very narrow, highly collimated beam with minimal divergence. This is due to the use of optical resonators (mirrors) that preferentially amplify light traveling along the cavity axis. High Intensity / Brightness: Lasers can concentrate a large amount of power in a very small area and within a narrow spectral range. This high brightness is a consequence of its directionality and coherence, making it appear much brighter than ordinary light sources of similar power. 11. Different Types of Lasers Lasers are classified based on the nature of their active medium, which determines their operating characteristics and applications. Gas Laser (He-Ne Laser): Active Medium: A mixture of Helium (He) and Neon (Ne) gases, typically in a ratio of 10:1. Neon is the actual lasing medium, while Helium acts as a sensitizer. Pumping Mechanism: Electrical discharge (DC or RF current) through the gas mixture. Electrons from the discharge excite He atoms to a metastable state. These excited He atoms then collide with Ne atoms, transferring energy and exciting Ne atoms to its upper laser level (a metastable state). Energy Levels: A four-level system for Neon. Pumping from ground state Ne to higher levels by collision with excited He, followed by fast decay to the upper laser level. The lower laser level is rapidly depopulated by collisions with the tube walls. Output: Typically emits a continuous wave (CW) red light at $632.8 \text{ nm}$, but can also produce other wavelengths (e.g., green, orange, IR). Characteristics: Highly stable, good beam quality, relatively low power (milliwatts). Applications: Barcode scanners, laser pointers, holography, optical alignment, interferometry. Solid-State Laser (Ruby Laser): Active Medium: A synthetic ruby crystal (Aluminum oxide, $Al_2O_3$, doped with about $0.05\%$ Chromium ions, $Cr^{3+}$). The $Cr^{3+}$ ions are the active centers. Pumping Mechanism: Optical pumping using a high-intensity flash lamp (e.g., Xenon flash lamp). The flash lamp light excites the $Cr^{3+}$ ions to a broad absorption band. Energy Levels: A three-level system. $Cr^{3+}$ ions are pumped from the ground state ($E_1$) to a broadband pump level ($E_3$), then rapidly decay non-radiatively to a metastable upper laser level ($E_2$). Lasing occurs between $E_2$ and $E_1$. Output: Emits pulsed red light at $694.3 \text{ nm}$. It is one of the first successful lasers. Characteristics: High peak power (pulsed operation), but low efficiency due to the three-level system requiring significant pumping to invert the ground state population. Applications: Holography, medical treatments (tattoo removal, hair removal), industrial drilling and cutting (historically). Semiconductor Laser (Diode Laser): Active Medium: A heavily doped p-n junction (often a heterojunction for better performance) made from direct bandgap semiconductor materials (e.g., GaAs, GaN, InGaAsP). Pumping Mechanism: Electrical pumping (forward biasing the p-n junction). Electrons are injected into the p-side and holes into the n-side, leading to a high concentration of carriers in the active region near the junction. Energy Levels: Effectively a four-level system, where the conduction band acts as the upper laser level and the valence band as the lower laser level. Population inversion is achieved between the bottom of the conduction band and the top of the valence band under heavy forward bias. Output: Highly versatile, can emit a wide range of wavelengths from infrared (e.g., CD players) to visible (e.g., red pointers, blue-violet for Blu-ray) and even UV, depending on the material. Can operate in continuous wave (CW) or pulsed mode. Characteristics: Compact size, high efficiency, direct modulation capability (can be switched on/off very rapidly), low cost, wide range of output powers. Applications: Fiber optic communication, CD/DVD/Blu-ray players, laser printers, barcode scanners, laser pointers, medical diagnostics, industrial sensing. 12. Applications of Lasers The unique properties of laser light (monochromaticity, coherence, directionality, high intensity) have led to a vast array of applications across numerous fields. Medical Applications: Surgery: Precision cutting and cauterization (e.g., CO2 lasers in general surgery, YAG lasers in ophthalmology). Ophthalmology: LASIK eye surgery (excimer lasers), treatment of retinal detachment, glaucoma. Dermatology: Tattoo removal, hair removal, skin resurfacing (Nd:YAG, Alexandrite, CO2 lasers). Dentistry: Curing dental fillings, cavity preparation, teeth whitening. Diagnosis: Flow cytometry, spectroscopy for tissue analysis. Industrial Applications: Material Processing: High-power lasers (CO2, fiber, Nd:YAG) are used for precise cutting, welding, drilling, and engraving of various materials (metals, plastics, ceramics). Manufacturing: Surface hardening, cladding, annealing, rapid prototyping. Metrology and Measurement: Highly accurate distance measurement, alignment, leveling (e.g., in construction), interferometry for precision measurements. Quality Control: Inspection, defect detection. Communication Applications: Fiber Optic Communication: Semiconductor lasers are the primary light sources for transmitting data over optical fibers, enabling high-speed internet and telecommunications. Free-Space Optical Communication: For short-range wireless data transmission. Information Storage and Retrieval: Optical Drives: Lasers read and write data on CDs, DVDs, and Blu-ray discs. Laser Printers and Scanners: Lasers are used to create images on drums in laser printers and for scanning documents. Scientific and Research Applications: Spectroscopy: High spectral purity of lasers allows for detailed analysis of material composition and structure. Holography: The coherence of laser light is essential for creating 3D holographic images. Fusion Research: High-power lasers are used in inertial confinement fusion experiments. Atomic Clocks: Ultrafast lasers are used for precision timing. Commercial and Consumer Applications: Barcode Scanners: He-Ne and diode lasers are widely used in retail. Laser Pointers: Small, inexpensive diode lasers. Displays: Laser projection systems for cinema and home entertainment. Security: Laser fences and alarm systems.
